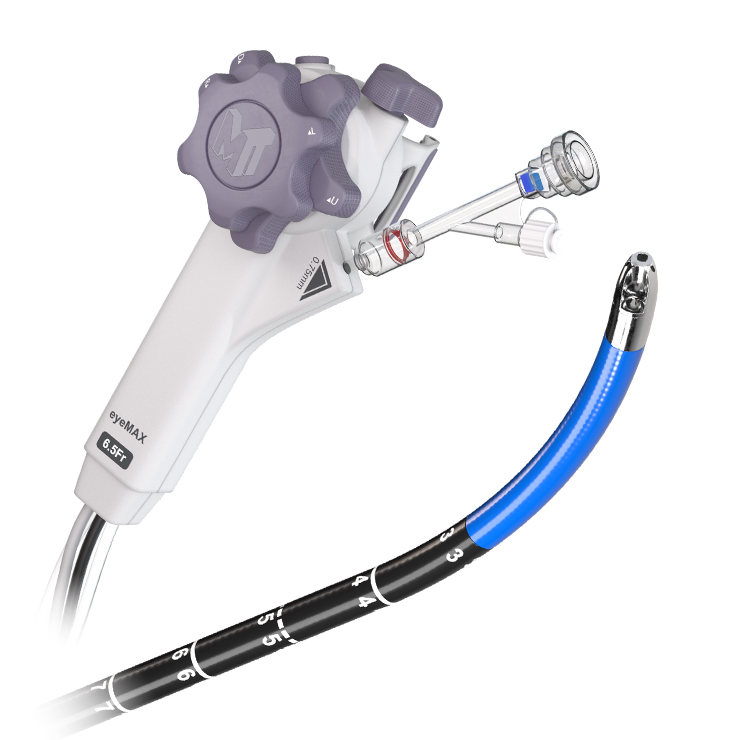

EyeMAX Slim Cholangioscope

Introducing the next generation of cholangioscopy technology, the EyeMAX portfolio now combines the established EyeMAX Cholangioscope with the EyeMAX Slim, expanding the range of options for different clinical needs.

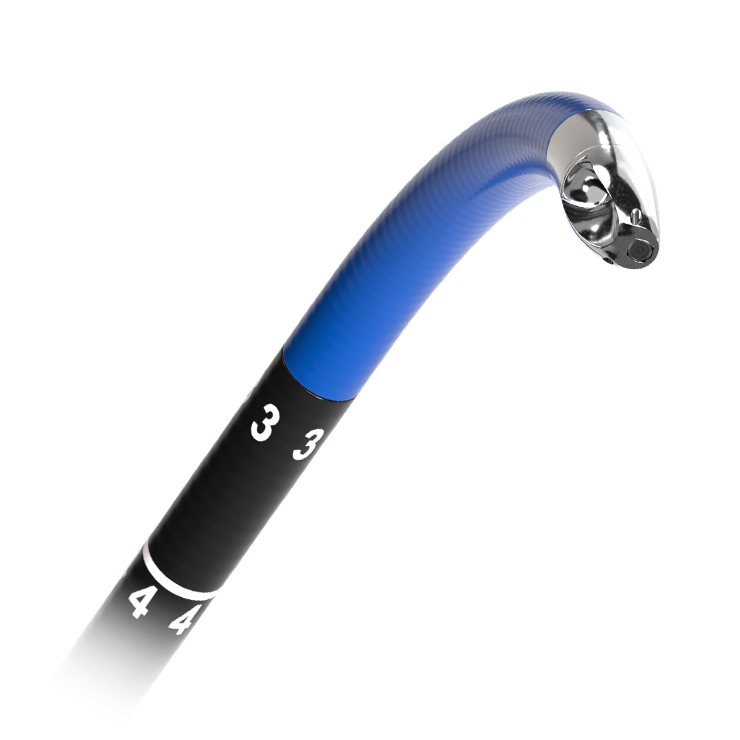

The EyeMAX Slim features a slim catheter diameter while retaining a comparatively large working channel. This design is intended to support manoeuvrability in narrow or proximal duct areas while allowing the use of EyeMAX-compatible accessories such as biopsy forceps.

Combined with high-resolution imaging, reduced radiation exposure, and compatibility with commonly used EHL systems, it offers a reliable solution for precise diagnosis and effective treatment across the biliary and pancreatic tract advancing cholangioscopy even further.

Arrange a Product Trial Request a Call Back

Specific Characteristics

Maintains working channel diameter while reducing overall catheter diameter
Access to intrahepatic and pancreatic ducts even in proximal areas
Stable navigation within narrow lumen
130° bending angle for increased manoeuvrability

Order Information Delivery Information

Available in Multiple Sizes

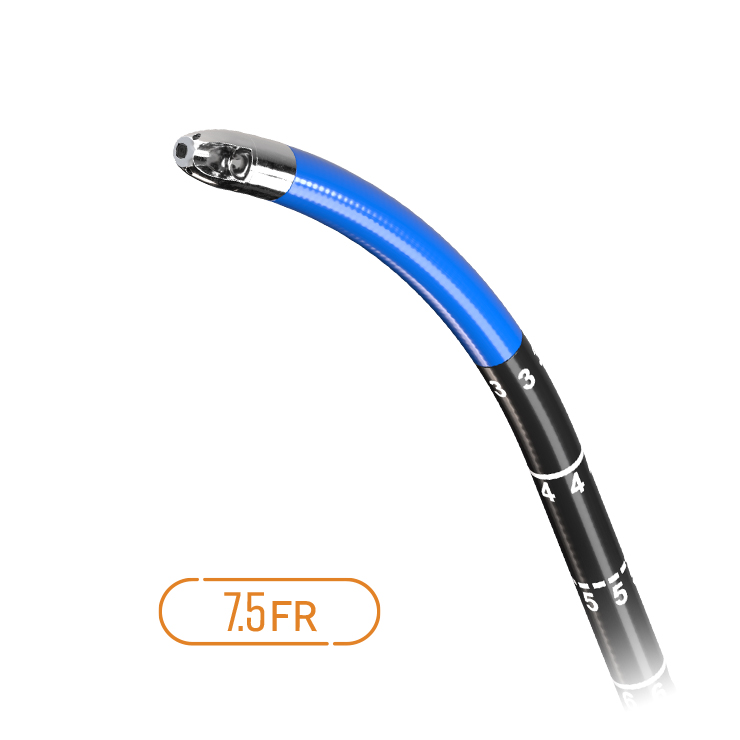

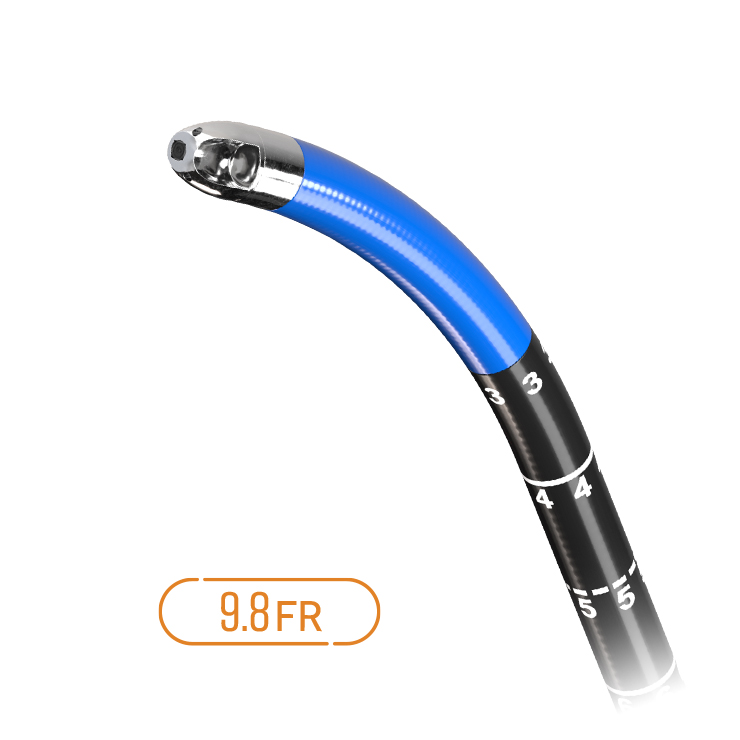

Available in 6.5, 7.5, 8.8 and 9.8 Fr to provide options for different clinical needs.

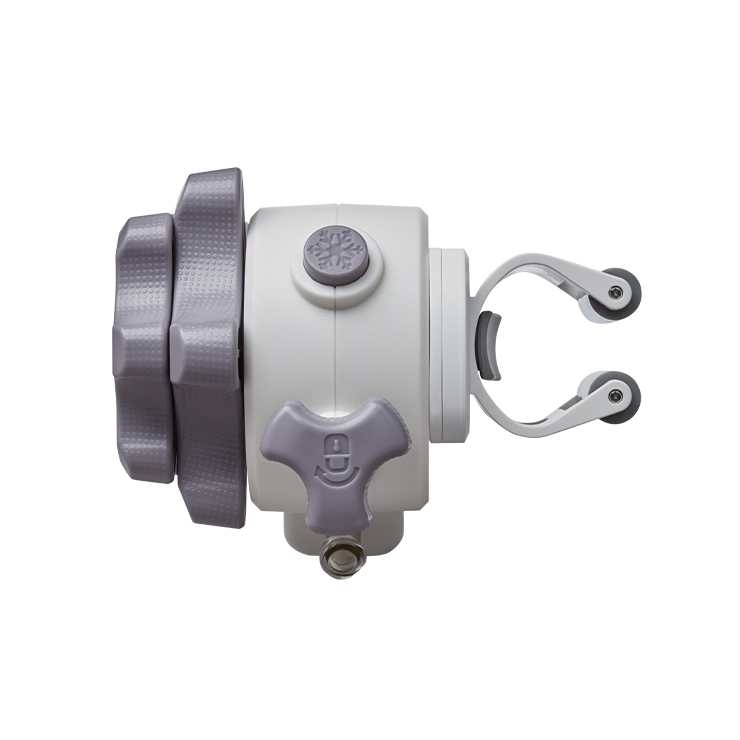

C-Clamp - Clamp & Go

The C-Clamp provides a user-friendly way of securing the eyeMAX Cholangioscope directly to the endoscope.

• Intuitive and quick attachment directly to the endoscope
• Easy handling For a smooth workflow during the procedure
• Axial rotatability ensures fluid movements and natural handling

Ordering Information

Eyemax Slim Cholangioscopes – Peroral

Product Number	Catheter Ø mm/Fr	Working channel Ø mm	Working length mm	Recommended target application
CDS33001	2.17 ≙ 6.5Fr	0.75	2200	Biliary and pancreatic duct
CDS44003	2.50 ≙ 7.5Fr	1.20	2090	Stenosis and complex anatomy
CDS55003	2.93 ≙ 8.8Fr	1.60	2090	High irrigation requirements
CDS66001	3.27 ≙ 9.8Fr	2.00	2200	More complex stone and stricture management
